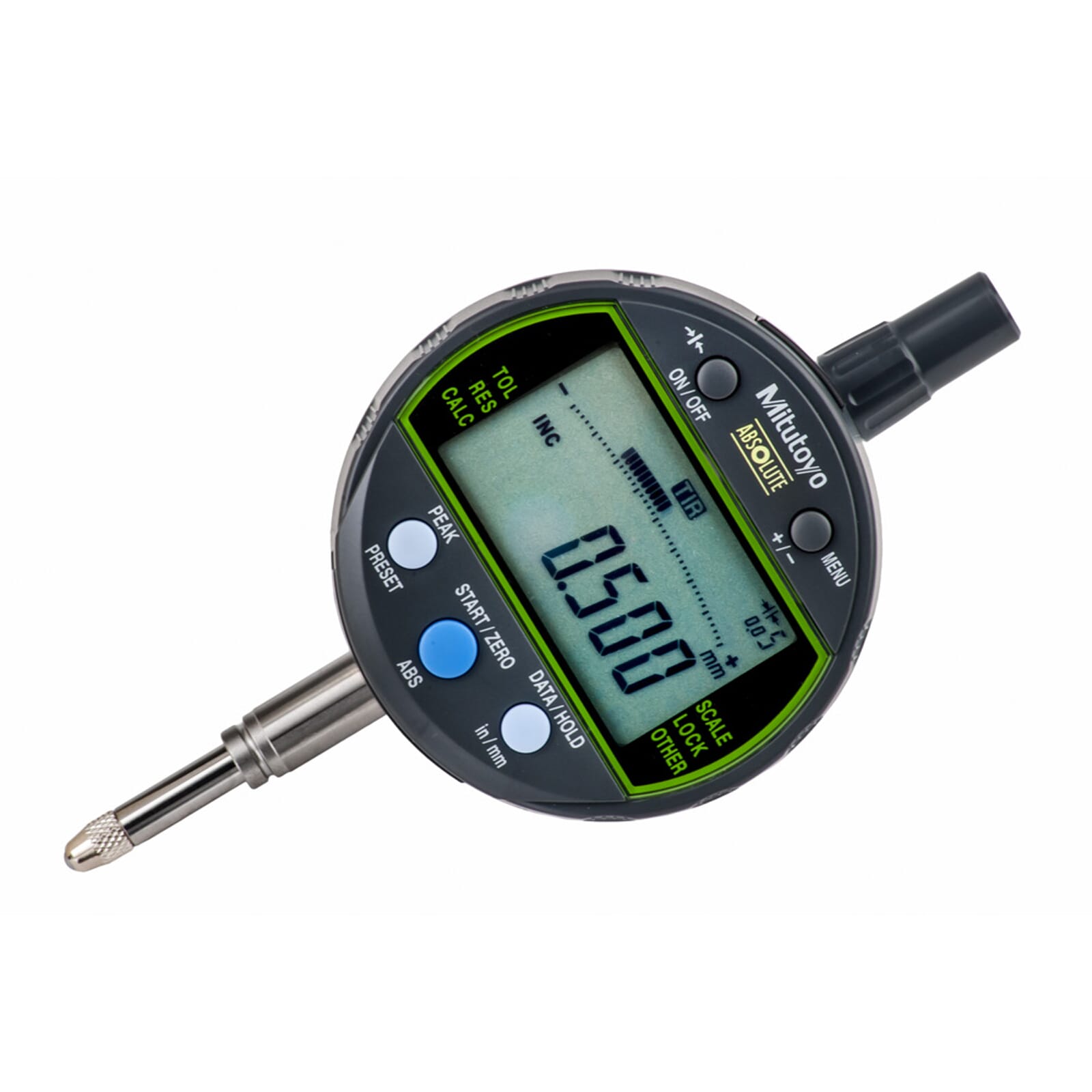

Mitutoyo Digital Indicator .5″/12.7mm Peak Value

he maximum, minimum, or runout value can be displayed during measurement
GO/+/-NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values.
High speed sampling ration of 50 times/s
Employing the absolute linear encoder, the Signal ID-C always displays the spindle “Absolute Position” from the origin at power-on

Code: 543-301,
Range: 0-.500″/12.7mm,
Resolution: .00005″/.001mm,
Accuracy: .00012″,
Stem/Shank: 8mm,
Contact Point: M2.5 x 0.45 Thread,
Type: ISO/JIS,
Measuring Force: 1.5N or less,
Display: LCD,
Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed: Unlimited
Dust/Water Protection Level: IP42

.5″/12.7mm
